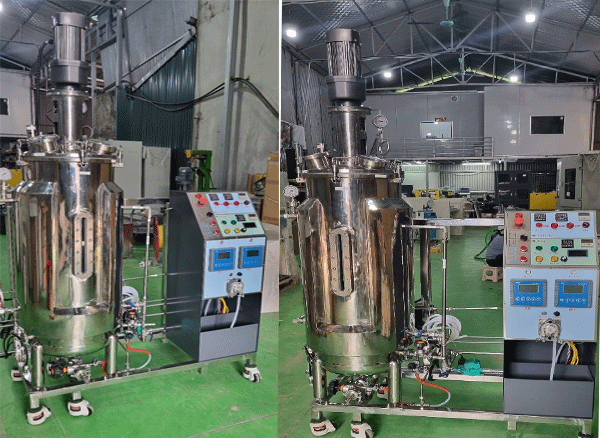

Hệ thống lên men nối tiếp

Thể tích tank lên men (L)

1^st tank: 10/15/20/30/50

2^rd tank: 100/300/500/800/1000

Vật liệu bên trong tank lên men

316L Stainless Steel

316L Stainless Steel

Khuấy

Top driven

Top driven

Tiệt trùng

In suit Sterilization

In suit Sterilization

Tính năng cơ bản

Kiểm soát – hiển thị nhiệt độ, tốc độ khuấy, pH, DO, chống bọt, bơm liệu, áp suất, aeration,

Kiểm soát – hiển thị nhiệt độ, tốc độ khuấy, pH, DO, chống bọt, bơm liệu, áp suất, aeration,

Tính năng nâng cao (optional)

Level,Weight Feed, Multi-Feeds, Mehanol&Ethanol, Exhaust O2&CO2

Level,Weight Feed, Multi-Feeds, Mehanol&Ethanol, Exhaust O2&CO2

Parameter and Function

pH

Displaying range: 0.00~14.00±0.01
Auto-control range: 2.00~12.00±0.05
Fermentation process control (According to the fermentation time, auto-control pH fluent, at least 10 parts)

pH value historical and trend curve analysis Acid, alkali dosage curve analysis
Batch report form analysis Acid, alkali total dosage record Keep

Antifoam

Automatic PID control and alarm
Fermentation process control (According to the fermentation time, auto-control antifoam fluent, at least 10 parts)

Antifoam value historical and trend curve analysis Foam error state record
antifoam total dosage record Batch report form analysis Keep

Rpm

Automatic enactment and control (50~1000 rpm ± 5‰)
Fermentation process control (According to the fermentation time, auto-control rev fluent, at least 10 parts)

Rpm value historical and trend curve analysis Batch report form analysis Keep and deliver data

Temperature

Temperature of cooling water: +5℃-65℃±0.2℃
Fermentation process control (According to the fermentation time, auto-control temperature fluent, at least 10 parts)

Temperature value historical and trend curve analysis Batch report form analysis Keep

Feeding

PID automatic enactment and control
Fermentation process control (According to the fermentation time, auto-control feeding fluent, at least 10 parts)

Feeding value historical and trend curve analysis
Feeding total dosage record
Batch report form analysis keep


Pressure

Manual control, instrument display

Air flux

Manual control, instrument display
